3510 Shear Beam load cell,Tedea-Huntleigh Model 3510,

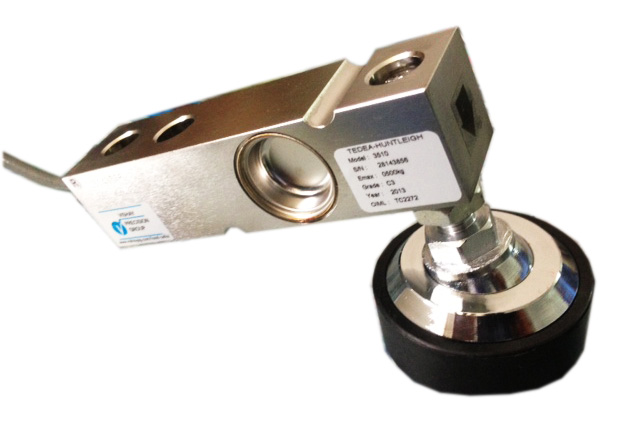

Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh Model 3510

Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh Model 3510 is designed for the ultimate protection necessary for today's hostile environments.

Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh Model 3510 is ideally suited for low profile platforms, pallet truck weighers, tanks and silos.

This high accuracy Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh Model 3510 is hermetically sealed to IP68 and is OIML Class C3 approved. When operated at constant temperature, all load cells offer 0.02% combined error performance regardless of accuracy class. Hermetically sealed, stainless steel construction assures long-term stability even under harsh environments and extreme temperatures. The slotted profile enables manufacturers to easily position the load cell without resorting to the use of mounting plates. For tank or hopper mounting applications, Tedea-Huntleigh offers theModel 9100 Series Cellmates. Cellmates simplify mounting while increasing system accuracy.

Features:

• Capacities from 500 to 5,000 Kg
• Stainless steel construction
• Combined error only 0.02%
• Hermetically sealed to IP68
• 6 wire (sense) circuit
• Interchangeable with Model 3410 and other industry
standard configuration load cells
• Fully welded protection

• Hostile environment capability
