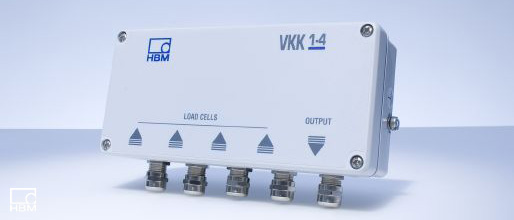

VKK1-4 / VKK1R-4 Junction Box

HBM’s VKK1-4/VKK1R-4 junction box enables the parallel connection of up to four load cells in a 6-wire circuit. HBM’s shielding design provides EMC-proofing under EN 45 501.

The terminal boxes also allow the screen to be connected conventionally by means of the screen strands. With this method, EMC-proofing under EN 45 501 is restricted, which can lead to measurement errors when there are electromagnetic interference fields.

• Parallel connection of up to four load cells (VKK1-4)
• Corner balancing via integrated resistor network
• EMC-proof acc. to EN45501 due to HBM shielding method
• Protection class IP65 acc. to EN60529
• VKK1R-4 with stainless housing
