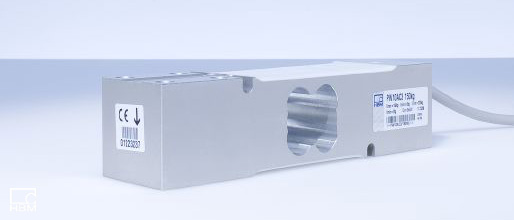

PW16A - Single Point Load Cell with Many Add-on Options, Maximum Platform Size 600 x 600 mm

The PW16A single point load cell is an absolute all-rounder for your weighing tasks: Robust, tried and tested HBM quality, available with a wide range of add-on options. For example:Explosion proof versions, different cable lengths, adjusted output for parallel connection.

The PW10A, PW12C, and PW16A types vary in size. Whatever the requirements of your application are: PW10A, PW12C, and PW16A always provide the right solution.
The maximum platform size of PW16A is 600 x 600 mm. The standard version of the shielded 6-wire connection cable is 3 m long; however, it is also available in other lengths. In addition to the standard version, HBM offers more add-on options for this load cell, for example, longer cables (up to 12 m), an adjusted output or a reduced minimum load cell verification interval (vmin) for multi-range applications. All PW16A… single point load cells are also available inexplosion proof versions as per ATEX 95 (Zone 1, 21; Zone 2,22).

Special features

• OIML R60 approval
• Max. capacities: 30 kg, 50 kg, 75 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg, 500 kg, 660 kg
• Off center load compensated (OIML R76)
• Meets EMC standards (EN 45 501)
• 6 wire configuration
• Material: Aluminum
• Accuracy Class: C3, C3MR

Optional

• Reduced minimum LC verification interval (vmin) for multi range applications
• Explosion-proof versions
• Different cable lengths
• Aligned output, suitable for connection in parallel
